Steering 14 Bolt Builder Kit Dodge/GM Extreme 14 kit

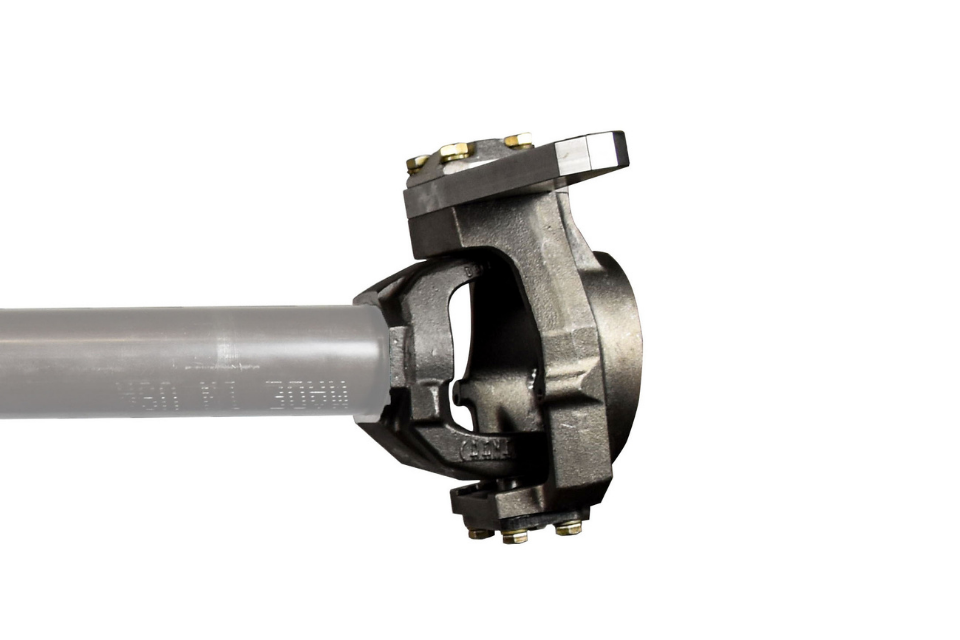

If you need a GM 14 Bolt Steering Axle Front End, this Crane Axle Extreme Duty GM 14 Bolt Interlocking Knuckle Kit is the best possible option you can add on. Created using Crane's Dana 60 Inner C's and Outer Knuckles.

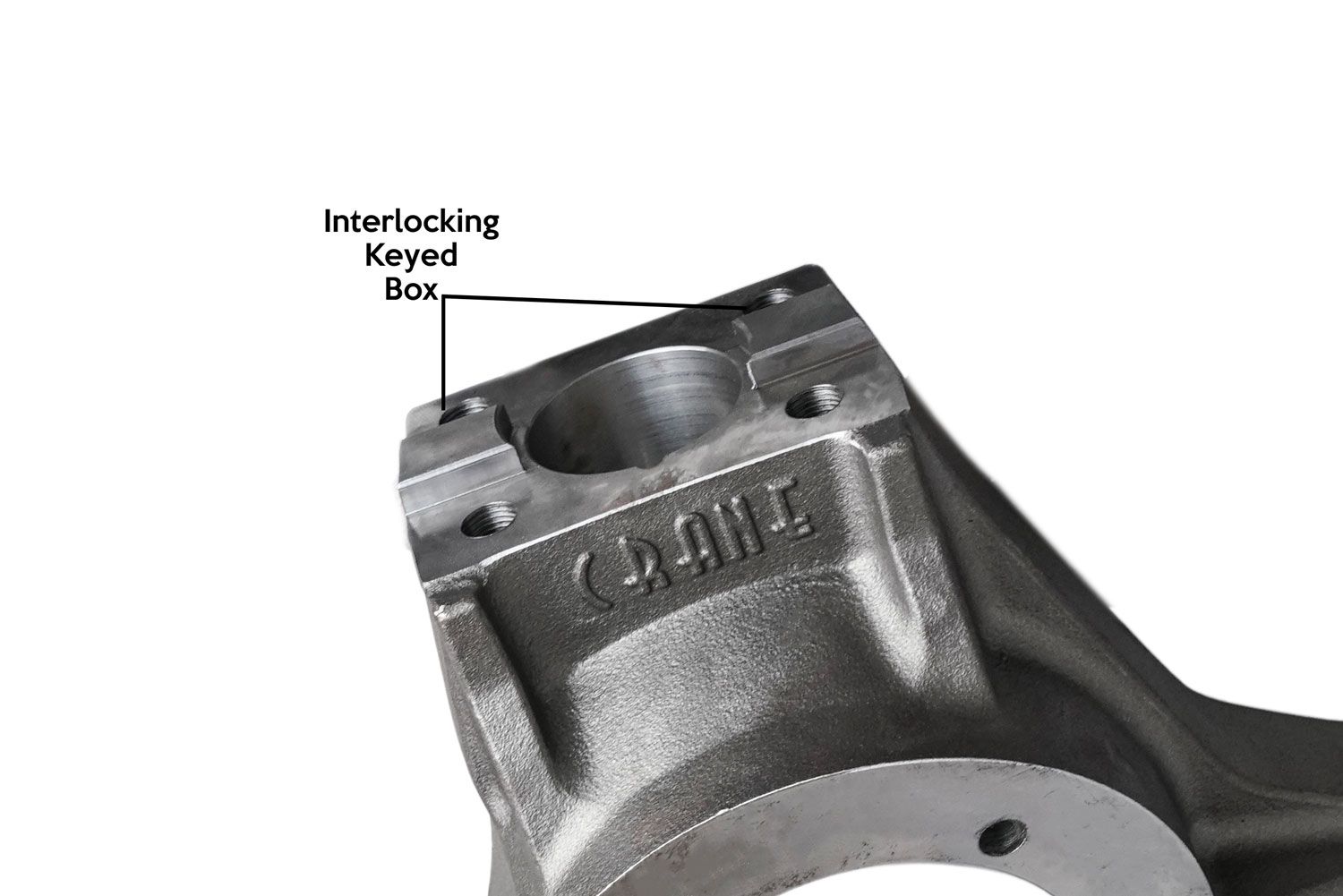

Interlocking Keyed High Steer Arms means No Bolt Sheering

No need to worry about sheered bolts. The Crane Axle High Steer arms are keyed to interlock with the top of the GM Dana 60 Knuckles. This puts the stress that can occur on high steer arms onto the knuckle.

Uses Off the Shelf GM Components in case of a Failure on the Trail

Crane Axle's GM Dan 60 Front Steer Knuckle kit uses all of the of the factory GM components of outer knuckles. In the case of a broken or failed component, you can easily get a replacement locally and continue riding.

This kit includes all needed components with the Kingpin Components Kit

• 1 - Crane Kingpin Spring Eliminator Kit
• 2 - Upper Kingpin Cones with Seals
• 2 - Upper Kingpin Bushings
• 2 - Lower Bearings/Races and Seals
• 2- Lower Kingpin Caps (trunnions) and Hardware
• 10 - 7/16-20 Spindle Studs

100% USA Cast and Machined

We start with the finest domestic grade 8620 chromoly steel and have our Dana 60 Knuckles cast in the USA. This allows for strict quality control and for a better end product. After casting, each part is individually CNC machined for maximum precision. Our process ensures a consistent end product every time.

A Lighter Weight Stronger GM 14 Bolt Knuckle

Using 8620 Chromoly Steel on these GM 14 Bolt Dana 60 Knuckles instead of cast iron allows us to produce a lighter and stronger GM 14 Bolt Dana 60 Knuckle. Our 8620 chromoly parts can take abuse day in and day out. 8620 Alloy Chromooly Steel has a much higher carbon content than mild steel. The higher amount of carbon means increased strength. This material is characterized by a hard outer surface, combined with a ductile interior for higher strength. Minimum properties of 8620 (chrome-nickel-moly) alloy steel; Tensile Strength, psi: 97,000 Yield, psi 57,000.

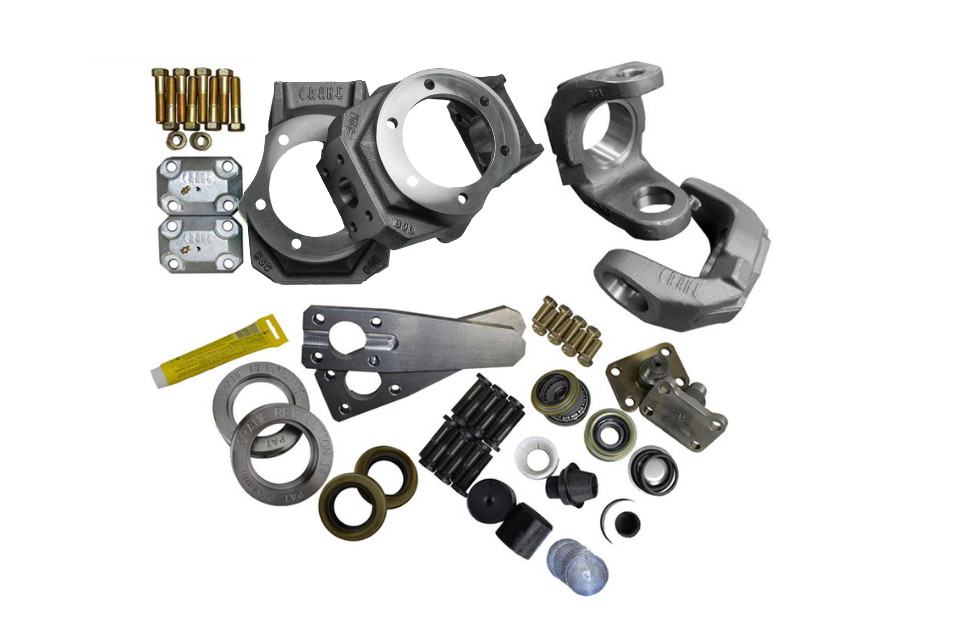

Includes:

• 2 - Chromoly Interlocking Dana 60 Outer Knuckles - Unfinished Steel
• 2 - Chromoly Dana 60 Inner C's - Unfinished Steel
• 2 - 1018 CR Steel Interlocking High-Steer Arms
• 2 - Kingpin Caps
• 1 - Kingpin Components Kit
• 1 - REV-14 Seal System
• All Hardware
