Take control of your build with our Huffman's Fab Trail Chassis, a bare-bones foundation designed for DIY enthusiasts who want to create their own custom off-road or motorsport vehicle. Starting at just $6,500, this chassis gives you the flexibility to build your rig exactly to your specifications, starting with a solid, rugged base.
Key Features:

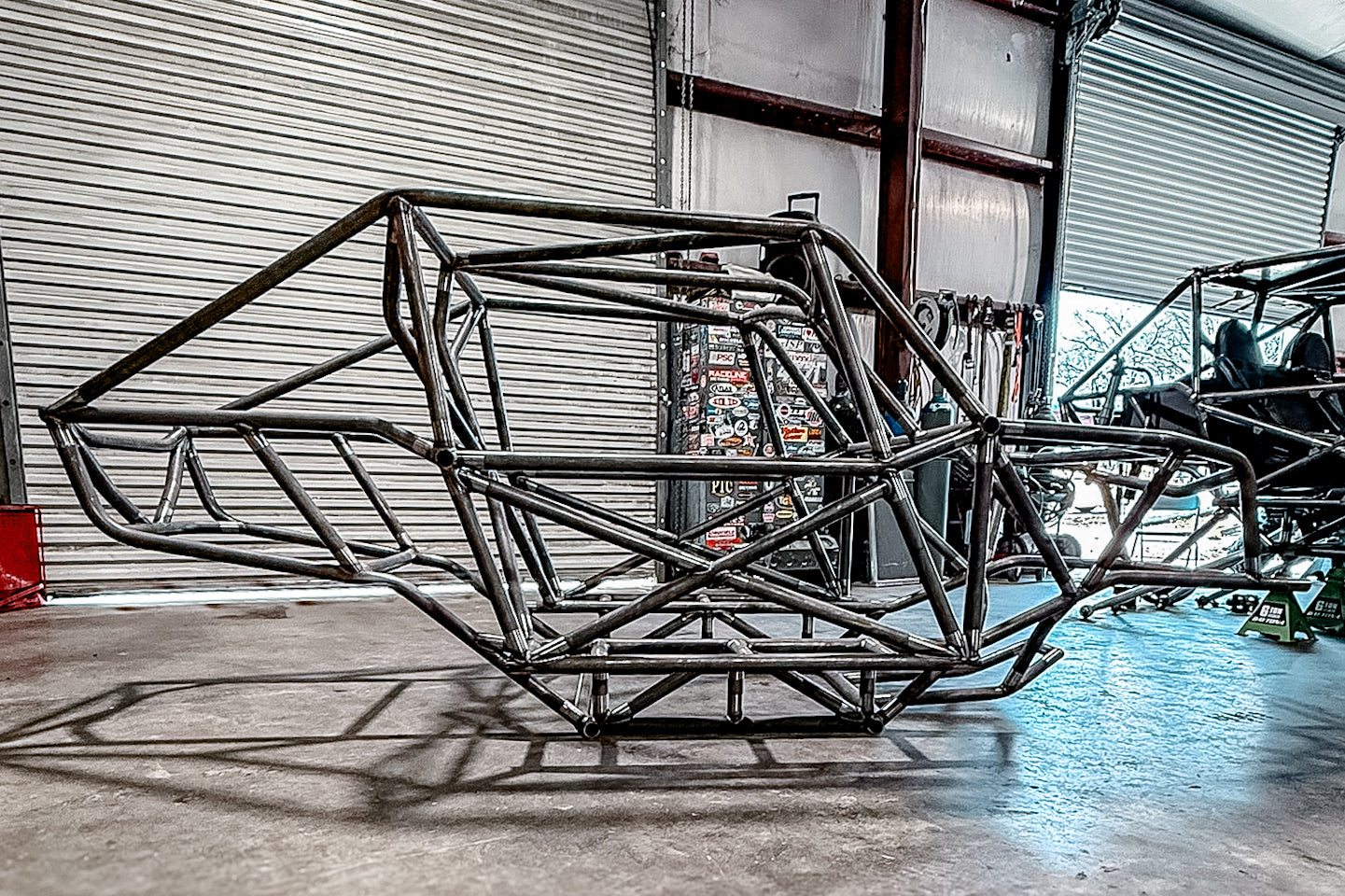

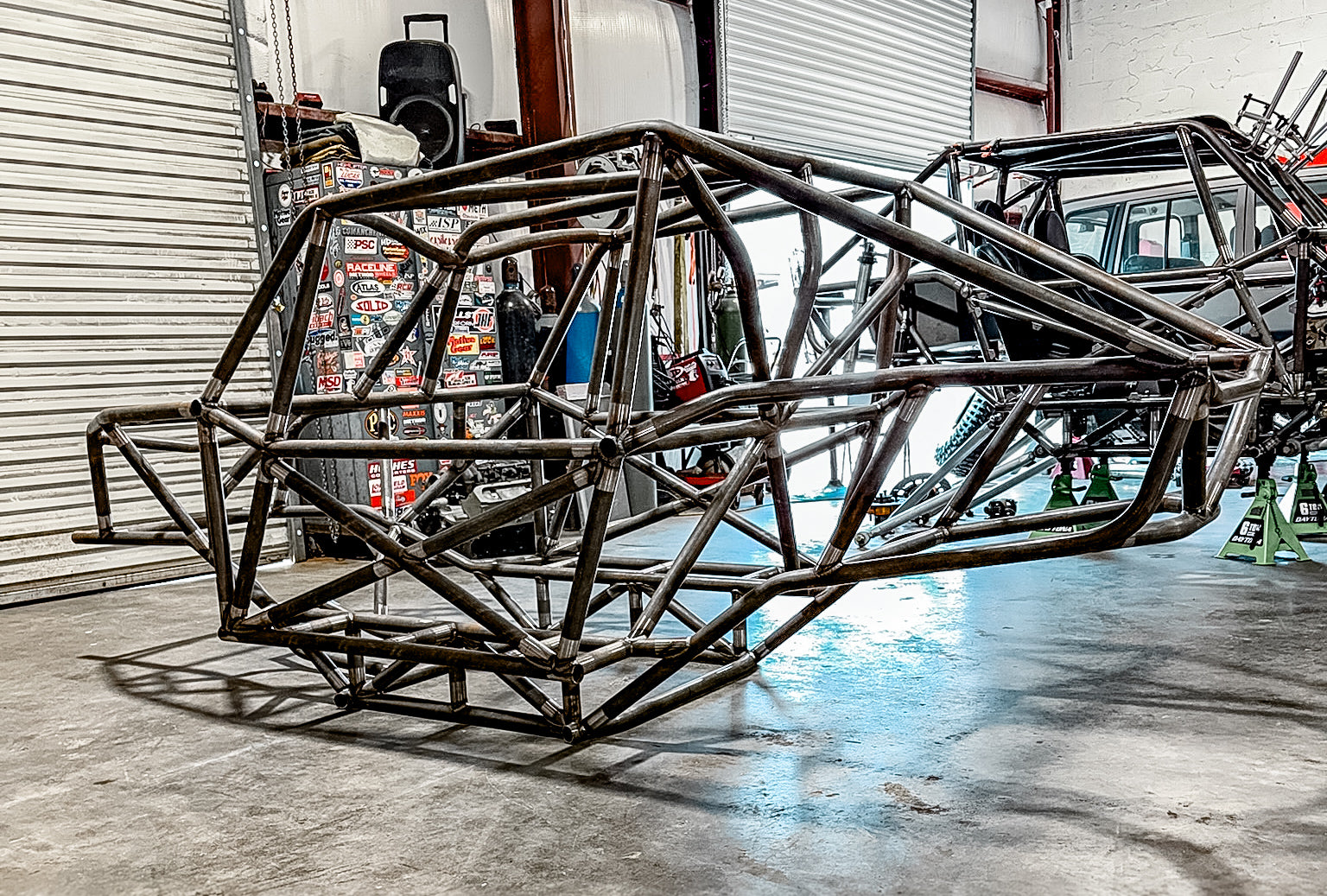

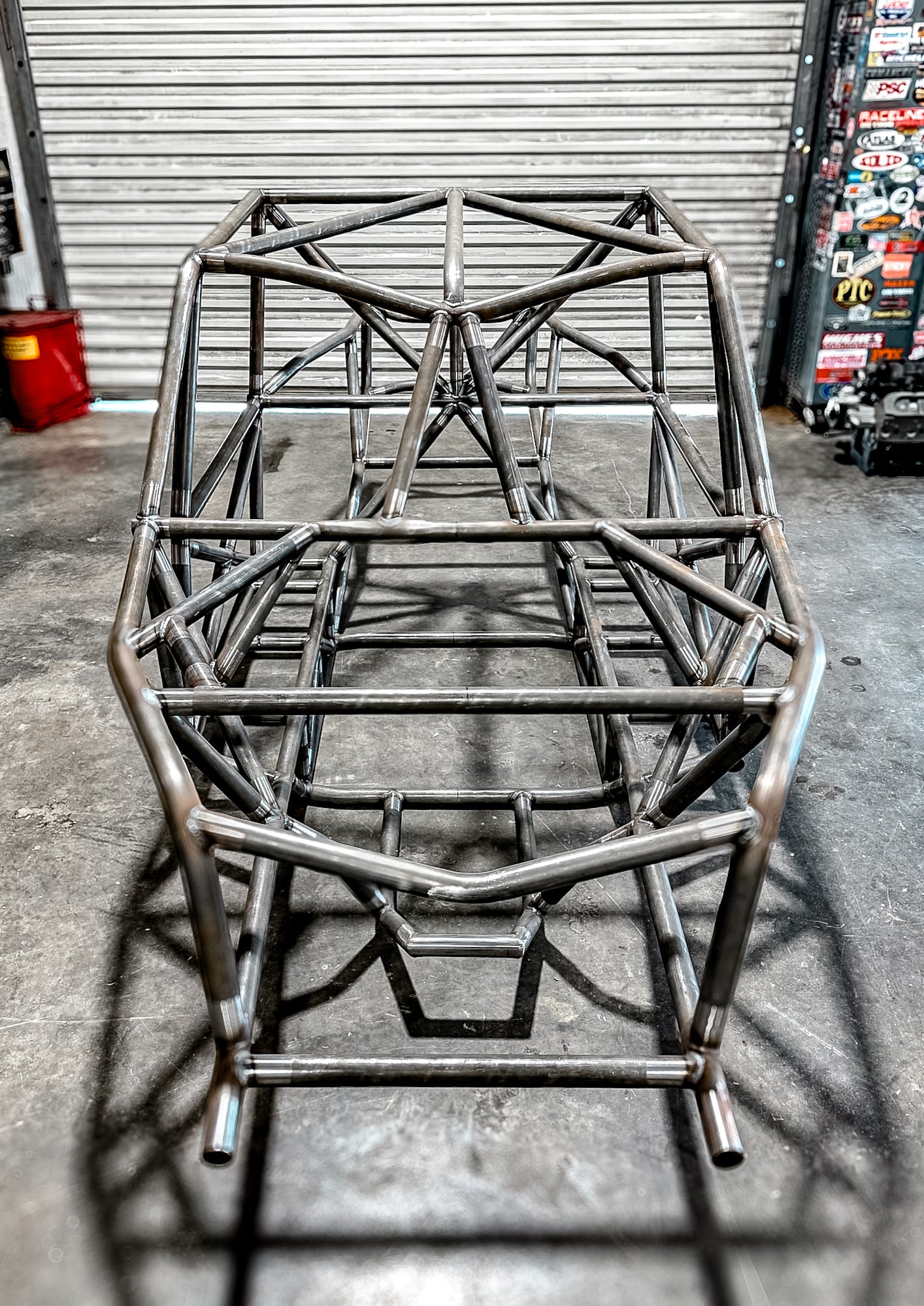

Bare Chassis: The Stage 1 CNC chassis is delivered as a bare chassis with engine skid tubes, with no added components. It provides the structure and core elements necessary for your build while giving you the freedom to customize every stage of the process.
Dimensions:
50 inches inside the car from B pillar to B pillar (inside tube)
53.5 inches from belly to B pillar at bottom of roof tube. (bottom to top)
50.25 inches from Dash tube to Harness tube
41-inch offset from floor to roof bar, offering ample headroom for the largest seats available on the market.
Materials are constructed from .120 DOM thickness tubing, made in the USA.
•Full MIG Welded Construction: Built for durability and strength, the chassis is fully MIG welded. For those who prefer a finer, more precise weld, TIG welding is available upon request.
